Hydraulic Hose Crimper Tool IG-71500 Hose AC Crimping Tool For Barbed And Beaded Hose Fittings -------- ,Super Fast Cutting Speed

<p>The lightweight hand-held hydraulic press is very portable and for shop and field applications.</p><p>The device can be used on both beaded and barbed hose fittings. The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced barrier #6, #8, #10 and #12.</p><p>The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded case.</p><p>Hose Crimper dies snap quickly into the press fixture, requiring no pins or screws. </p><p>Multi-layer leak proof can be operated with 1 hand</p>

• 71500 Hydraulic Hose Crimper Hose Crimping Tool Kit Automotive
• Description:

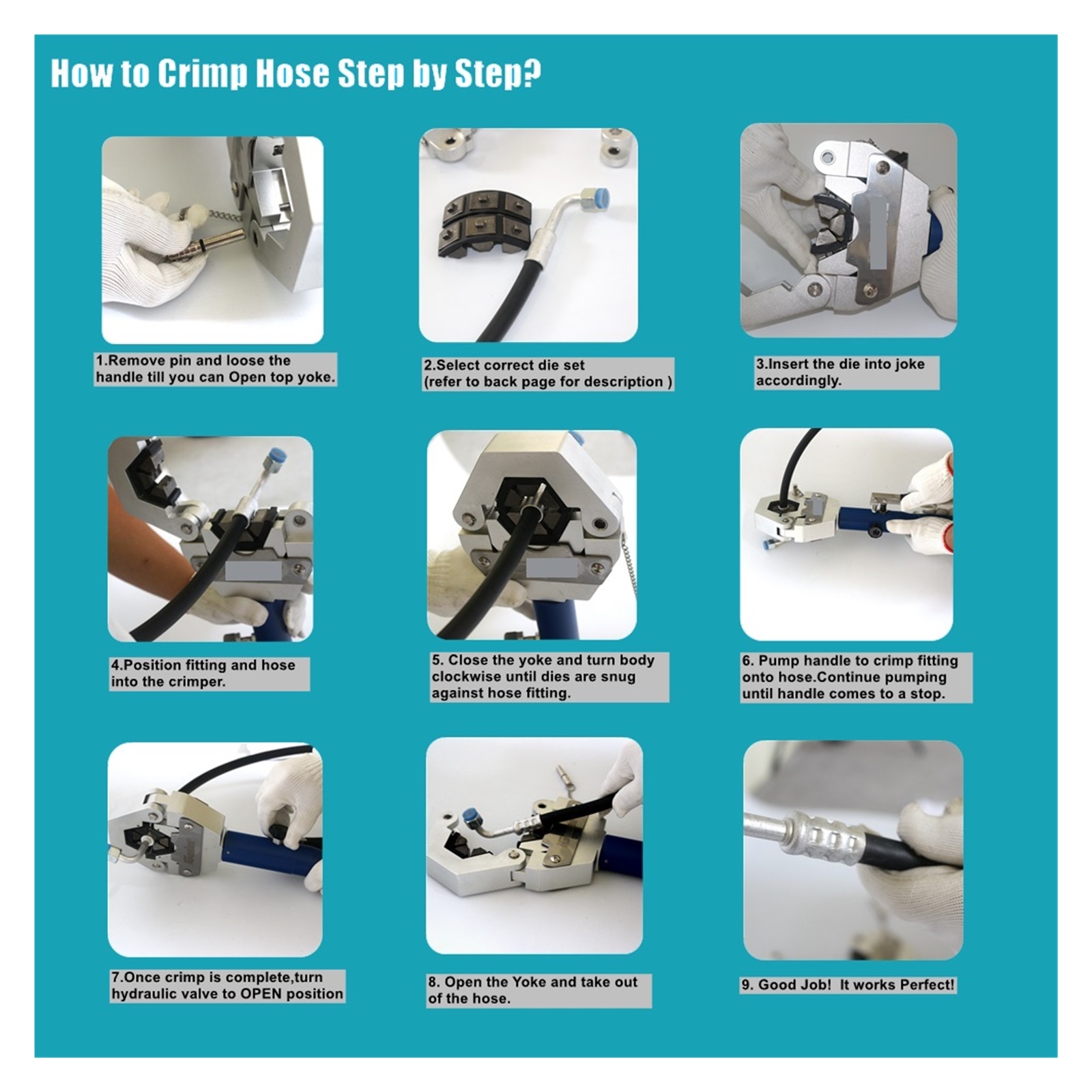

• Very easy for using :

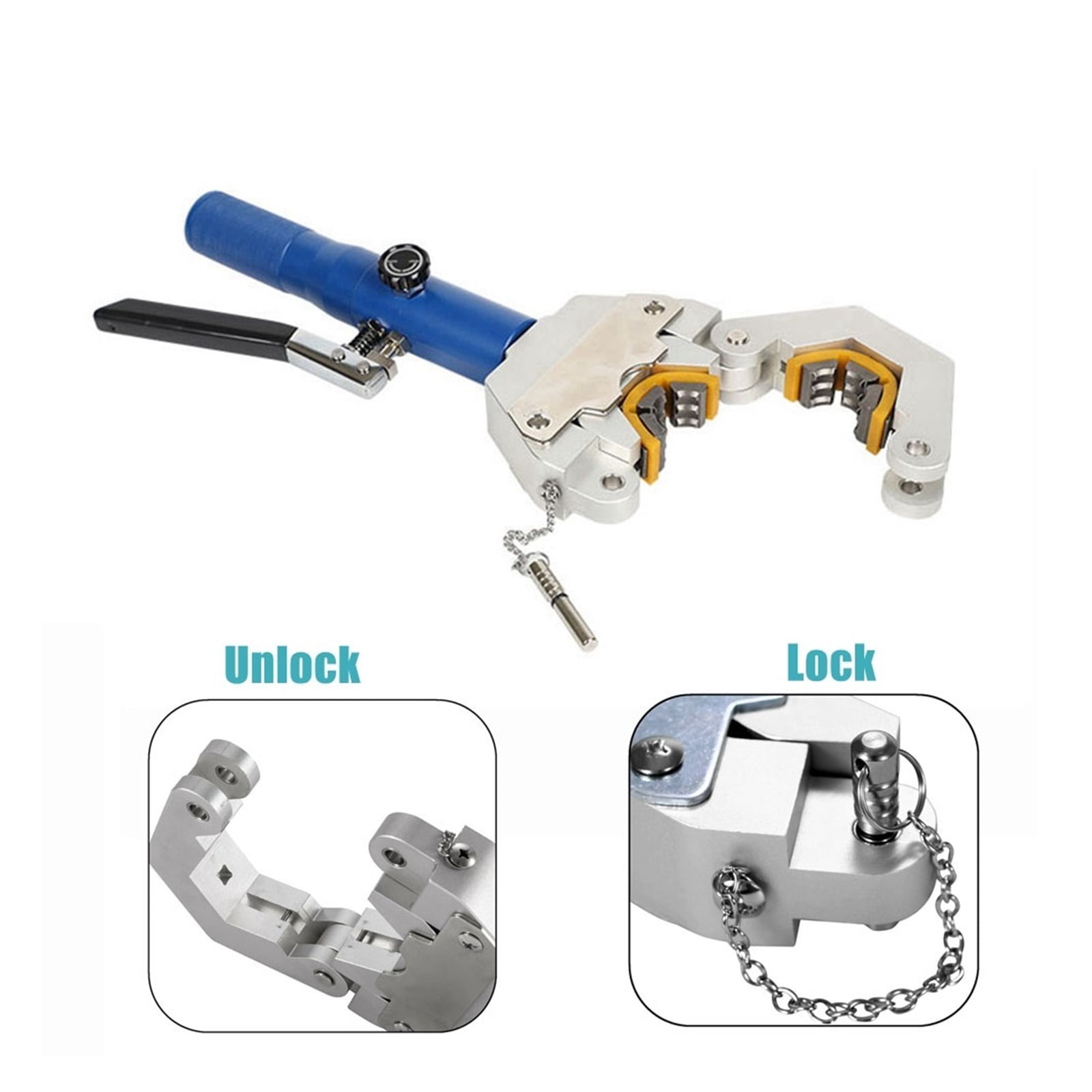

• 1.Remove pin and loose the handle till you can "Open" top yoke
• 2.select correct die set (refer to back page for description )
• 3.insert the die into joke
• 4.position fitting and hose in the crimper and close the yoke.
• 5.insert pin securely
• 6.Turn Body of tool clock wise until dies are snug against hose fitting
• 7.Turn hydraulic valve to "closed "position
• 8. Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop
• 9. Once crimp is complete,turn hydraulic valve to OPEN position
• Details:
• Using the 71500 Crimp Machine, Crimping barbed and beaded fittings as easy as 1 - 2 - 3 ! The lightweight hand-held hydraulic press is very portable and for shop and field applications.
• Pre-operation set-up
• Open the relief valve to fully recess the piston
• Rotate the yoke fully counter clockwise to bottom out the adapter seat
• READY TO GO!
• WARNING: Do NOT actuate the piston without having a hose and fitting in plave to crimp. This could cause damage to the tool. BE CAREFUL not to place hands near any pinch point while using the tool !
• Note: The hose crimper is available in black and blue and shipped randomly (blue with cutter, black no cutter)
• Specifications
• Condition: NEW
• Model: 71500
• Type: Hose Crimper Tool
• Quantity: 1 piece
• Weight: 17.6LBS 8KG
• Material: Aluminum Alloy

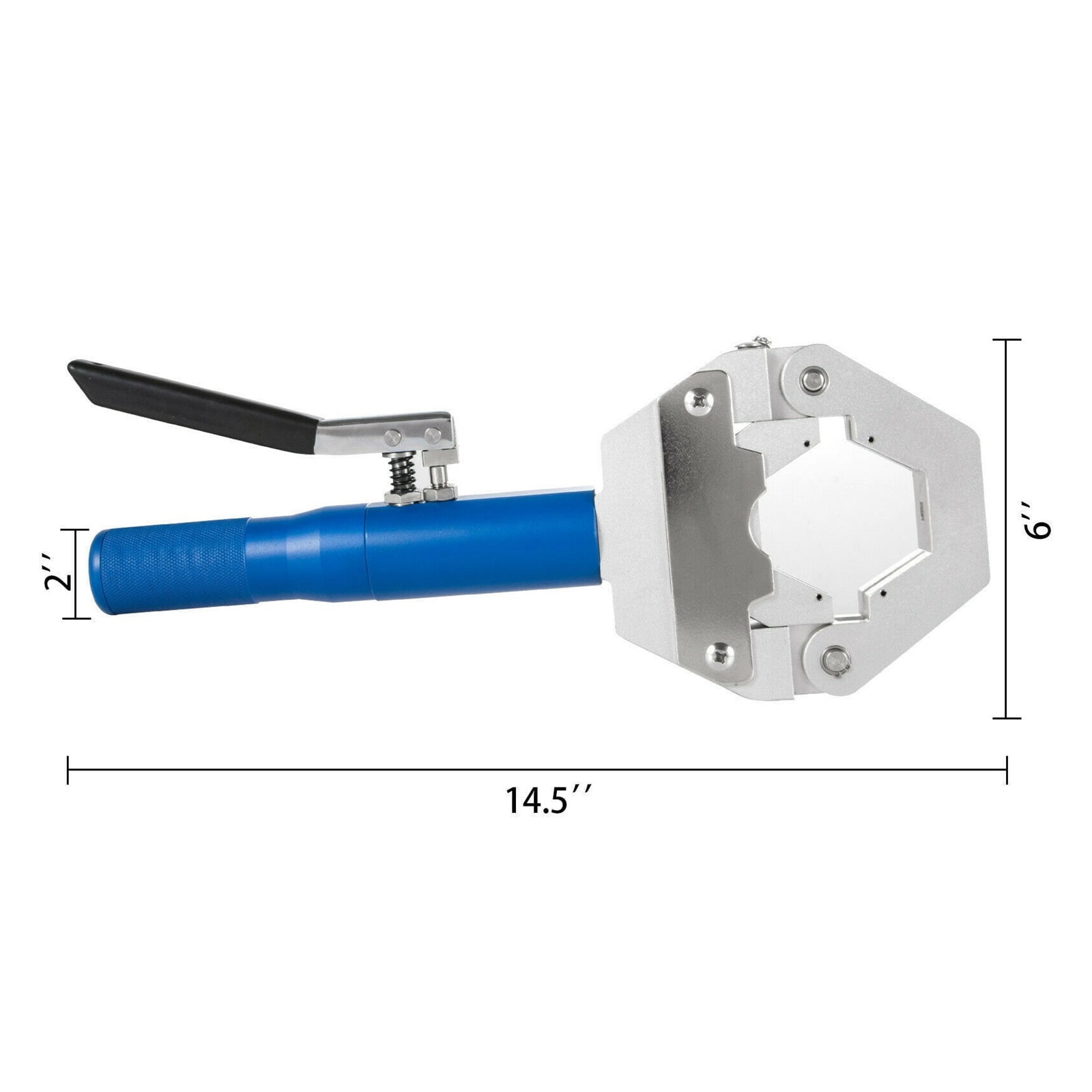

• Product Size: 18*15* 9 in /46*38*23 cm
• Package Size: 46.5*37.5* 23 cm

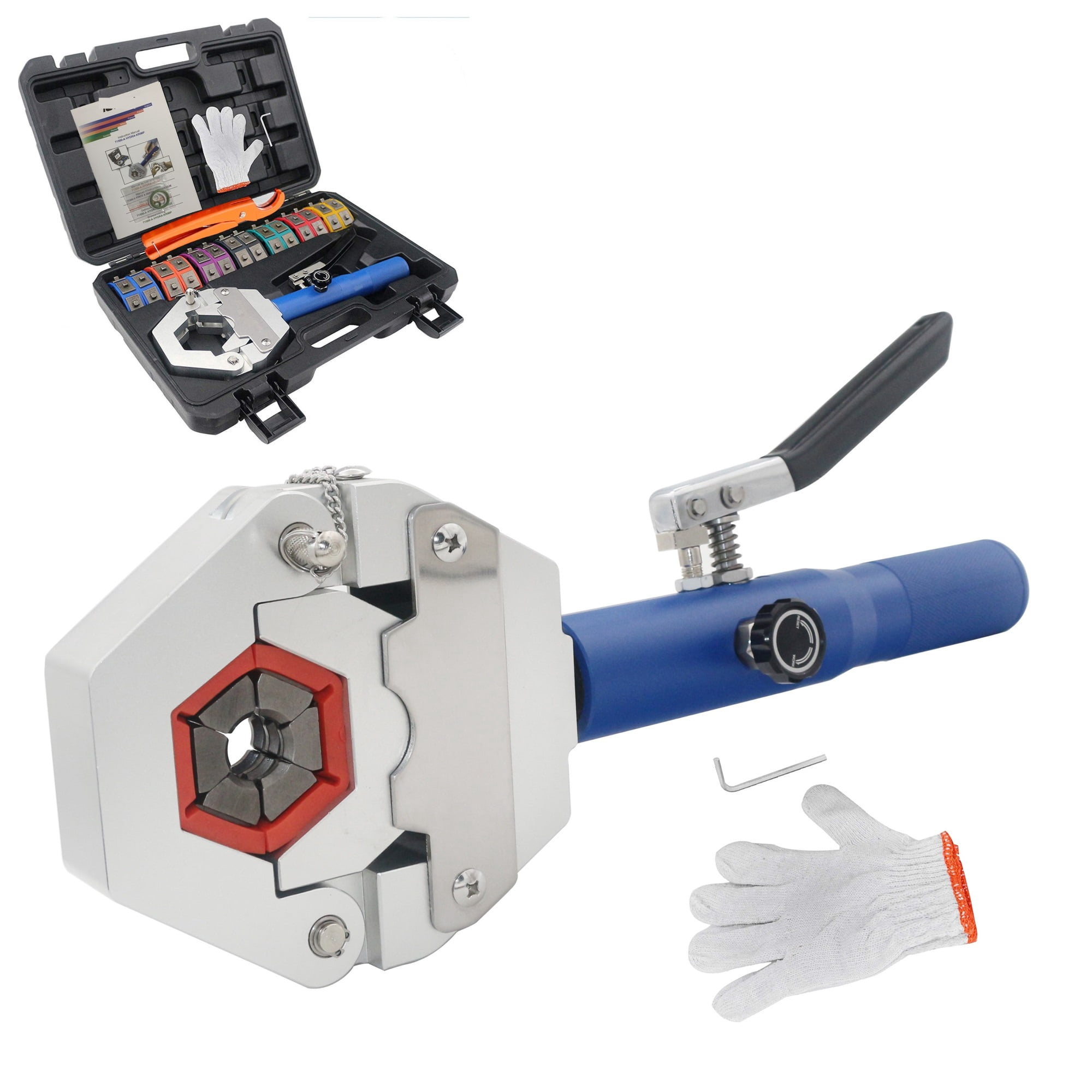

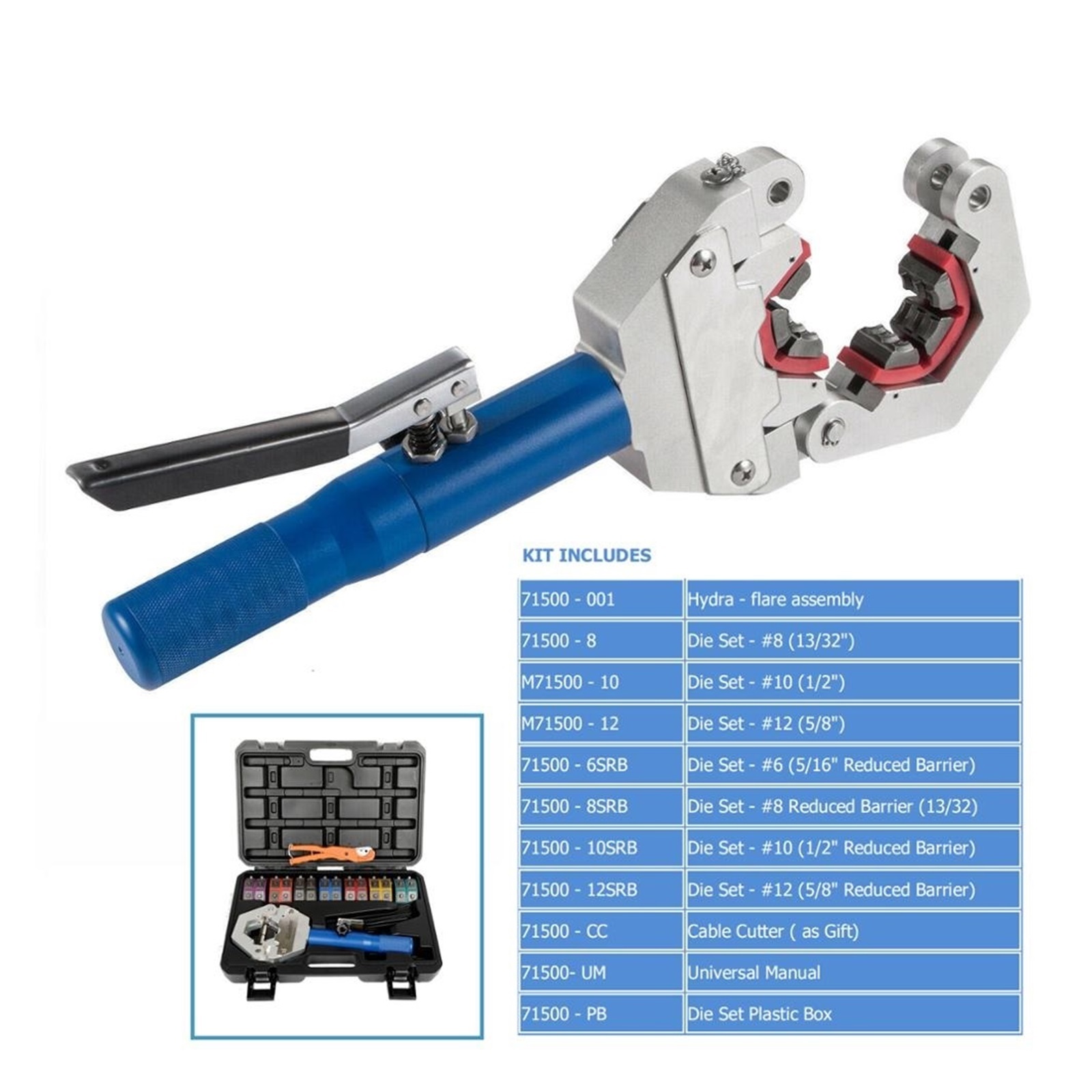

• Package Content
• 71500 - 001A- Krimp Pump
• 71500-001B-Krimp Yoke
• 71500-001C

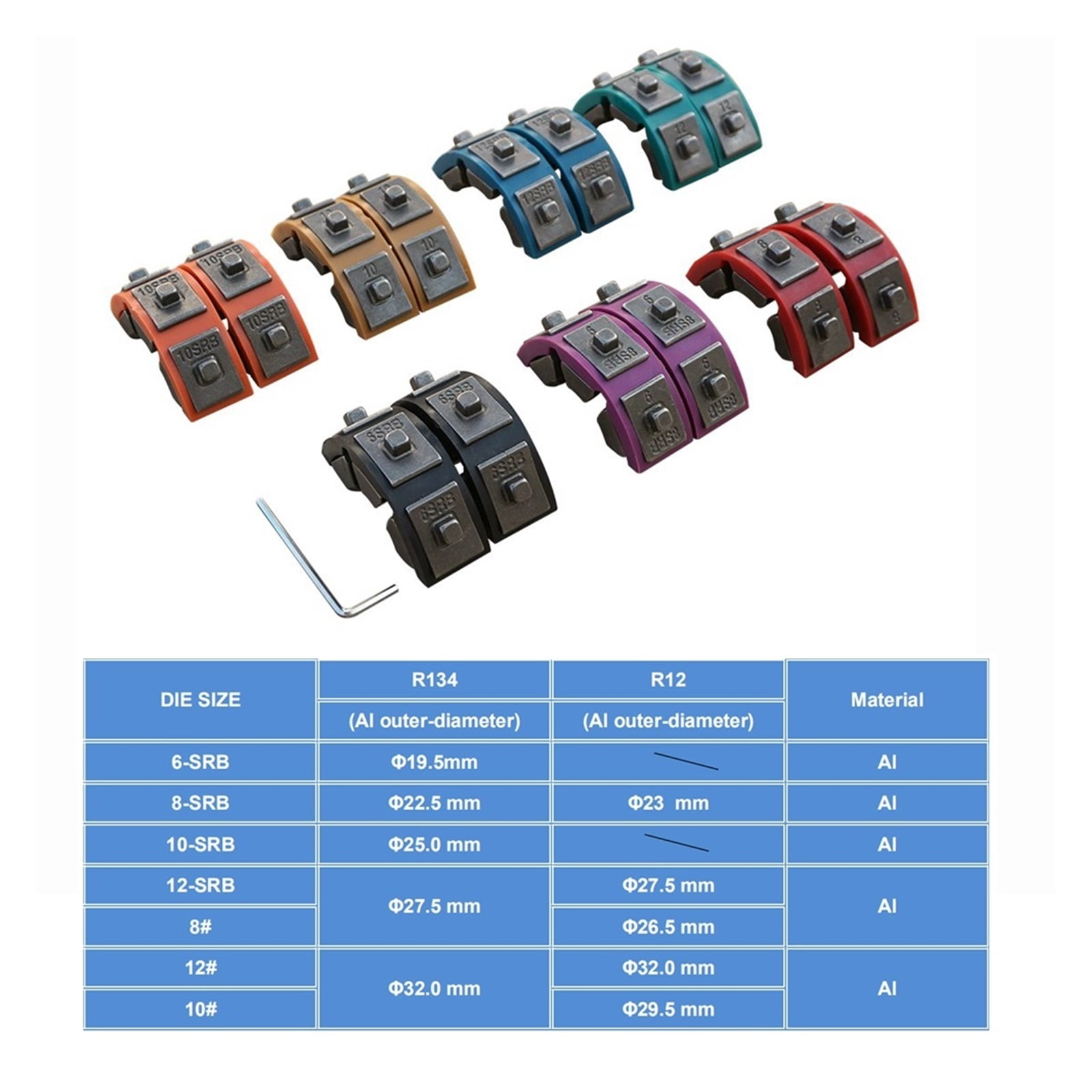

• 71500 - 6 Die Set - #6 (5/16")
• Die Set - #8 (13/32") (Reduced Barrier)
• 71500 - 8 Die Set - #8 (13/32")
• 71500 - 10 Die Set - #10 (1/2")
• 71500 - 12 Die Set - #12 (5/8")
• 71500 - 6SRB Die Set - #6 (5/16") (Reduced Barrier)
• 71500 - 10SRB Die Set - #10 (1/2") (Reduced Barrier)
• 71500 - 12SRB Die Set - #12 (5/8") (Reduced Barrier)
